Heavy Duty Square Double Woven Crimped Vibrating Screen Wire Mesh for Vibrating Screen
This kind of wire mesh is identified from a wire crimped only in the points of intersection, before weaving. Crimped wire mesh is only made on request and the wire used may be round or square.
Product Features
Crimped woven wire mesh offers great dimensional strength and stability, great resistance to abrasion, uniform openings and excellent anti-corrosion. It is usually used as quarry screen in mine, quarry and other industrial fields as sieving, grading and separating screening materials.
Material : Manganese steel,carbon steel,stainless steel and galvanized mild steel
The manganese steel is very abrasive and corrosive. And the stainless steel material is very corrosive.
According to the different application, also choose different materials.
Weaving type:double crimped,double intermediate crimped,single intermediate crimped,lock crimped,flat top crimped.
Woven from pre-crimped wires,the edge can be required by clients.
Crimped wire offers stable structure and good strength.
Application of vibrator screen mesh:
Cement industry;
Stone crushers;
Coal feeders;
Machinery belt guards
Packing
crusher screen mesh and sand gravel crimped screen mesh is packed in rolls or panels, outside wooden cases or wooden pallet.
| Aperture Square Weave | Light Duty | Medium | Heavy Duty |
| Wire | Dia kg/㎡ | OA% | Wire | Dia kg/㎡ | OA% | Wire | Dia kg/㎡ | OA% |
| 2.00 | | | | | | | 1.37 | 7.1 | 35 |
| 3.15 | | | | 2.00 | 9.9 | 37 | 2.50 | 14.1 | 31 |
| 4.00 | 2.00 | 8.50 | 44 | 2.50 | 12.2 | 38 | 3.05 | 16.8 | 32 |
| 5.00 | 2.00 | 7.80 | 51 | 2.50 | 16.6 | 44 | 3.05 | 14.7 | 38 |
| 5.60 | 2.50 | 9.80 | 48 | 3.05 | 13.7 | 41 | 4.00 | 21.2 | 34 |
| 6.35 | 2.50 | 8.89 | 51 | 3.05 | 12.6 | 46 | 4.00 | 19.6 | 38 |
| 6.80 | 2.50 | 9.00 | 51 | 3.05 | 10.0 | 44 | 4.00 | 19.7 | 37 |
| 7.10 | 2.50 | 8.80 | 55 | 3.05 | 11.9 | 48 | 4.00 | 18.3 | 41 |
| 8.00 | 2.50 | 10.80 | 54 | 4.00 | 16.9 | 44 | 5.00 | 24.4 | 38 |
| 9.00 | 3.05 | 9.80 | 55 | 4.00 | 15.6 | 48 | 5.00 | 22.7 | 44 |
| 10.00 | 3.05 | 9.10 | 58 | 4.00 | 14.5 | 51 | 5.00 | 21.2 | 44 |
| 11.20 | 3.05 | 10.40 | 54 | 5.00 | 19.6 | 48 | 5.60 | 28.6 | 44 |
| 12.50 | 4.00 | 12.30 | 57 | 5.00 | 18.1 | 51 | 5.60 | 20.0 | 47 |
| 14.00 | 4.00 | 16.70 | 54 | 5.00 | 20.0 | 51 | 6.80 | 24.6 | 48 |
| 16.00 | 5.00 | 15.10 | 58 | 5.60 | 19.5 | 56 | 6.80 | 22.6 | 51 |
| 18.00 | 5.00 | 14.50 | 58 | 6.80 | 20.7 | 55 | 7.10 | 25.0 | 51 |
| 20.00 | 5.60 | 14.00 | 61 | 6.80 | 19.2 | 58 | 7.10 | 24.0 | 54 |
| 22.00 | 5.60 | 17.60 | 61 | 7.10 | 21.5 | 57 | 8.00 | 26.7 | 54 |
| 25.00 | 6.80 | 16.10 | 64 | 7.10 | 20.1 | 60 | 8.00 | 24.6 | 57 |
| 28.00 | 7.00 | 14.70 | 62 | 8.00 | 19.0 | 61 | 9.00 | 27.8 | 57 |
| 32.00 | 8.00 | 20.60 | 64 | 9.00 | 26.0 | 60 | 10.00 | 30.4 | 58 |
| 38.00 | 8.00 | 18.70 | 67 | 9.00 | 28.1 | 64 | 10.00 | 27.9 | 61 |
| 40.00 | 9.00 | 21.00 | 67 | 10.00 | 25.4 | 64 | 11.20 | 31.1 | 61 |
| 45.00 | 9.00 | 19.50 | 69 | 10.00 | 23.4 | 67 | 11.20 | 28.4 | 64 |
| 50.00 | 10.00 | 23.20 | 69 | 11.20 | 26.0 | 67 | 12.50 | 31.8 | 64 |
| 56.00 | 10.00 | 19.20 | 72 | 11.20 | 28.7 | 69 | 12.50 | 29.0 | 67 |
| 63.00 | 10.00 | 17.40 | 75 | 11.20 | 24.5 | 72 | 12.50 | 25.0 | 70 |
| 76.20 | 10.00 | 14.80 | 78 | 11.20 | 16.0 | 75 | 12.50 | 20.0 | 73 |
| 80.00 | 10.00 | 16.00 | 79 | 11.20 | 17.5 | 72 | 12.50 | 21.5 | 75 |
| 90.00 | 10.00 | 14.00 | 81 | 11.20 | 15.7 | 79 | 12.70 | 19.4 | 77 |
| 100.00 | 10.00 | 10.00 | 82 | 11.20 | 14.3 | 81 | 12.70 | 17.6 | 79 |
Product Tags:
|
|

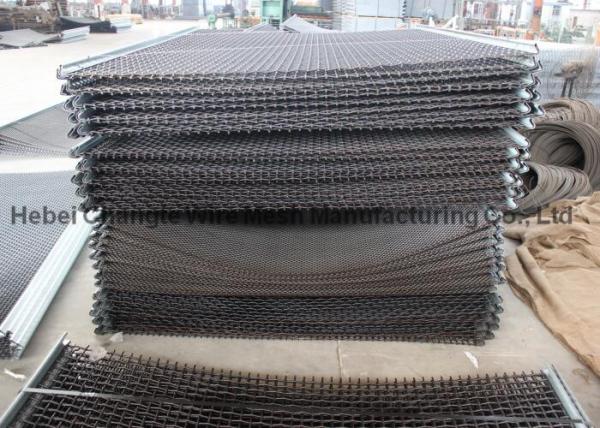

Manganese Steel Square Crimped Vibrating Woven Mesh Screen Images
|
